Terracotta Cladding
The Argeton terracotta rainscreen cladding system combines the proven durability and natural beauty of clay, with a simple support structure. This enables the designer freedom of expression and the contractor a simple and quick installation process. Ceramic tiles are fixed onto the substrate via vertical or horizontal aluminium support rails and purpose-made aluminium clamps or clips. In the opinion of the BBA, the Argeton terracotta cladding system, if installed, used and maintained in accordance with certificate number 22/6507, can satisfy or contribute to satisfying the relevant requirements of The Building Regulations 2010 (England and Wales), 2004 (Scotland) and 2012 (Northern Ireland).
Suitable for use on a new building, refurbishment or re-cladding project, the Argeton facade system is backed by BBA certification and CWCT testing. Providing tangible environmental benefits, Argeton holds the Environmental Product Declaration in accordance with ISO14025 and EN15804 being the European standardised equivalent of a BREEAM accreditation.
The ceramic tiles, support rails, clamps and clips are classified as ‘non-combustible’ in accordance with national building regulations and are not subject to any restrictions on building height or proximity to boundaries.
Product details
Argeton Tiles
Argeton tiles are made from 100% natural materials, composed of mixed clay and water, before being extruded to produce plain, grooved or shaped baguette tiles. Fired at high temperatures, the tiles are then cut to length for a defined and consistent finish. Achievable both horizontally and vertically, the Argeton terracotta rainscreen tiles and systems are interchangeable to suit specific design requirements. Tile options include:
Tampa

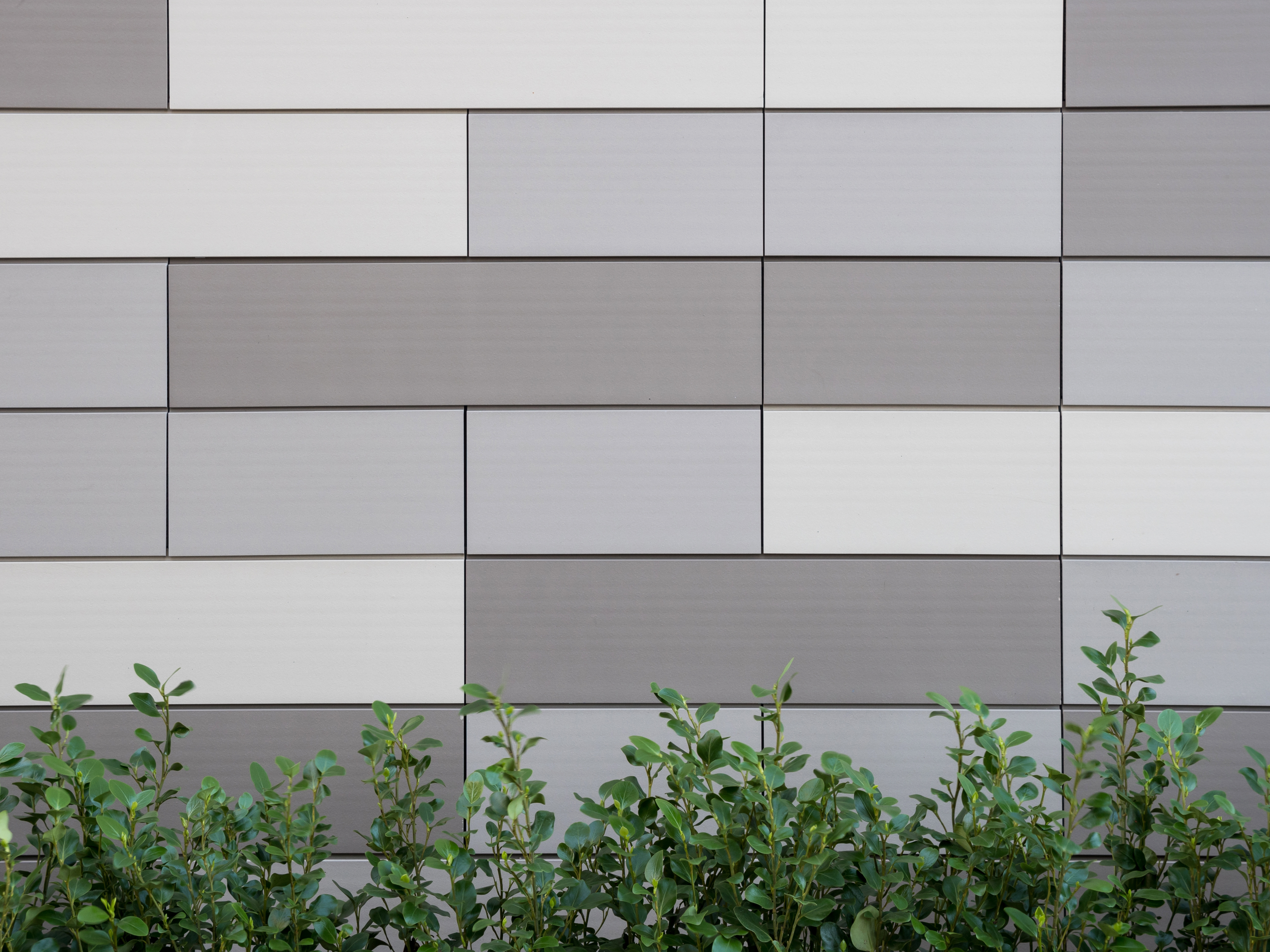

Tampa tiles are a single, undisturbed panel, fitted using invisible clips. Though these are commonly manufactured to a contemporary, smooth finish, five textured surfaces are also available.
Terzo

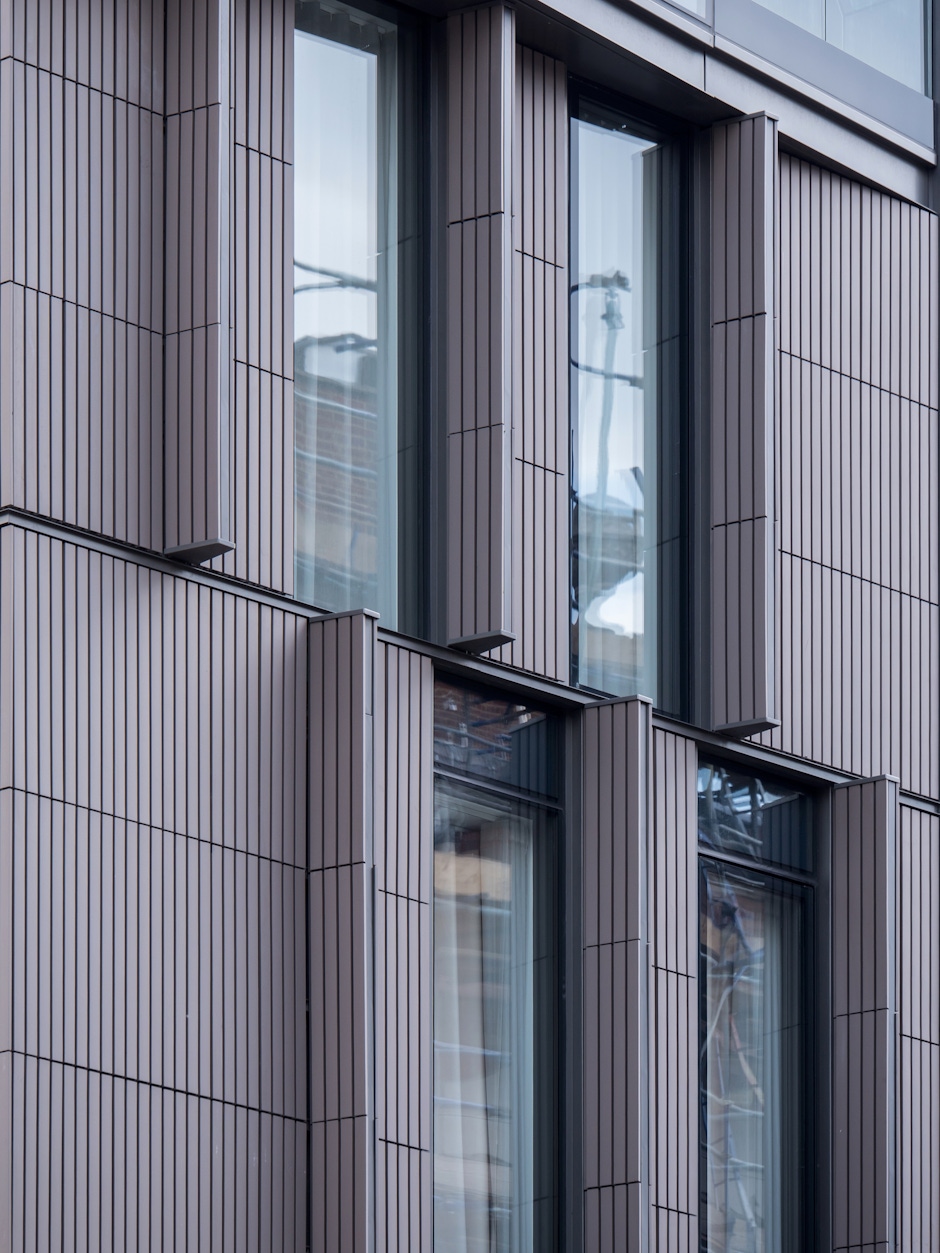

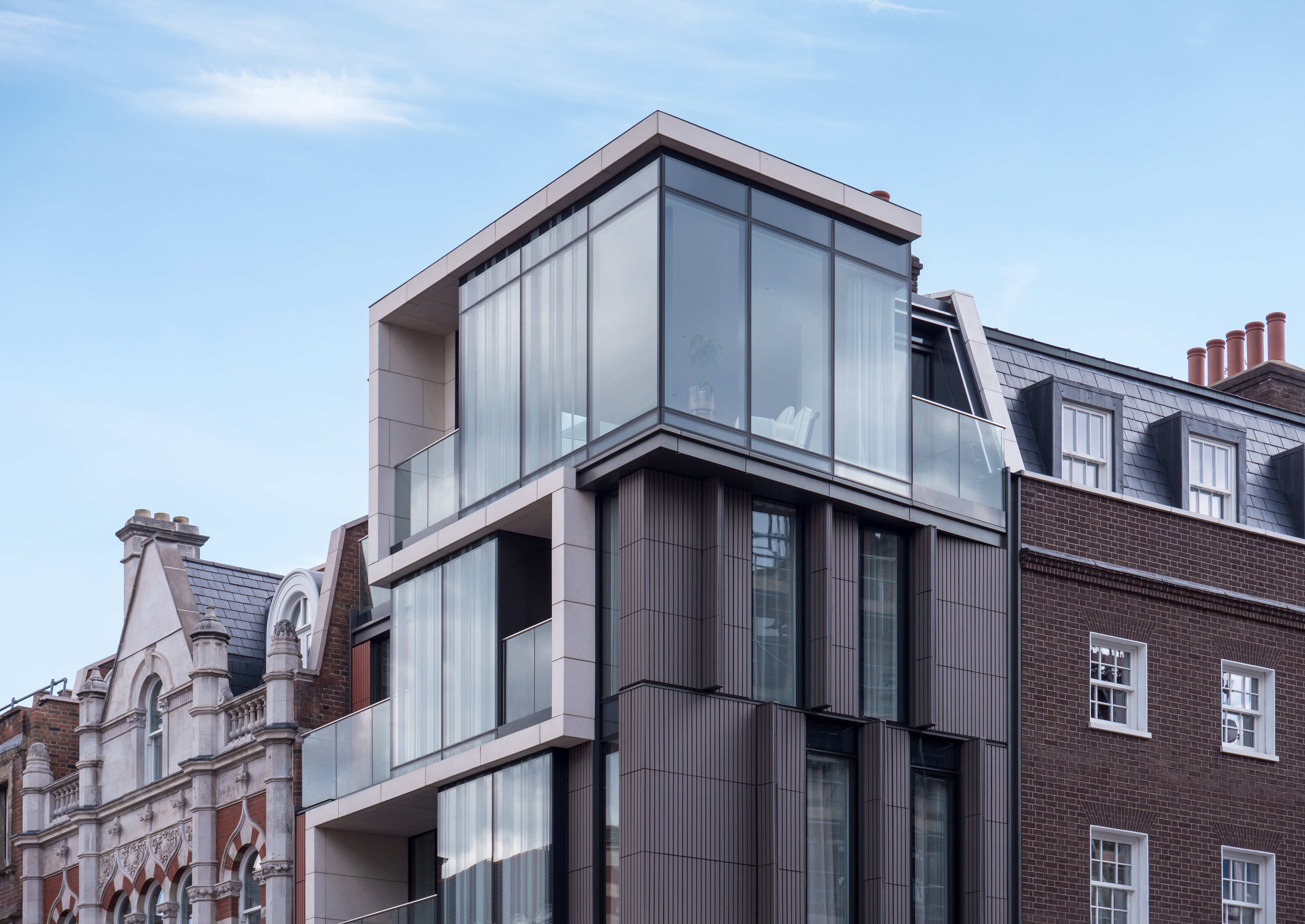

Terzo panels create an alternate visual option with deep grooves extruded into each tile. Available with different widths and distances between grooves, the Terzo panels provide additional customisable elements for your facade design.
Lineo
Lineo tiles are a stylish choice, with 3mm horizontal grooves shaped into the panels surface. Lineo tiles can be combined with Tampa or Terzo tiles within a system for a unique project finish.
Barro
Barro baguettes can be manufactured in an elliptic, square, rectangular, or other desired shape. Functionally used for sun protection as a brise soleil when mounted in front of windows, barro baguettes are coloured on all sides for an attractive facade from all perspectives.
Danza
Danza tiles are installed with an overlap, creating light and shadow on the facade. With a range of formats and colours available, these tiles are installed with hidden fixings, creating a sleek and contemporary facade.
Certification and Testing
BBA
In the opinion of the BBA, the Argeton terracotta rainscreen cladding system, if installed, used and maintained in accordance with certificate number 22/6507, can satisfy or contribute to satisfying the relevant requirements of The Building Regulations 2010 (England and Wales), 2004 (Scotland) and 2012 (Northern Ireland).
NHBC
Accepts the use of Argeton terracotta cladding, provided it is installed, used and maintained in accordance with BBA certificate 22/6507, in relation to NHBC Standards, part 6 Superstructure (excluding roofs), Chapter 6.9 Curtain walling and cladding.
Impact
When tested for hard and soft body impacts, the Argeton terracotta rainscreen cladding system achieved adequate resistance. Therefore, the tiles are considered suitable for use categories II, III and IV in accordance with EAD 090062-00-0404, table G.2 (see table 1 of BBA certificate 22/6507) provided the distances between the clamps (or clips) and rails are as stated in section 6.5 of BBA certificate 22/6507.
Behaviour in Relation to Fire
The system components (panels, support rails, clamps and clips) are classified as A1 reaction to fire, in accordance with the documents supporting the national Buiding Regulations.
Environmental Product Declaration (EPD)
In accordance with ISO14025 and EN15804 being the European standardised equivalent of a BREEAM accreditation.
Key Features
Reliable
Frost, scratch and UV-colour resistant, our terracotta rainscreen is designed without gaskets, pressure clips or seals that can either deteriorate within the design life of the system, or contribute to ‘tile creep’ as a result of thermal movement.
Durable
In normal UK conditions, the system will have a service life in excess of 35 years, see section 10 of BBA certificate 22/6507.
Sustainable
Manufactured directly adjacent to the quarry from which the natural clay is sourced, Argeton tile production minimizes the transport of raw material. Confirmed by their ISO 14025 and EN 15804 certified status, the tiles are also fully recyclable, creating a sustainable life cycle.
Versatile
Height modules are available from 150–500mm and in module lengths up to 1500mm dependent upon tile module height. In addition to the large standard range and new Inspirio colours, unique shapes and bespoke tiles can also be developed to suit individual project needs.
Designers, planners, contractors and/or installers must ensure that the installation of the Argeton rainscreen cladding system is in accordance with the BBA certificate holders’ recommendations, the requirements of certificate (22/6507) and specifications laid down by the consulting engineer.
The system is designed to be installed by cladding contractors provided they have undergone suitable training by the holder of BBA certificate number 22/6507.
Colours and finishes
The colour of the terracotta tiles is determined by the raw material (clay), which does not contain synthetic dyes. As a result of this, the tiles will retain their colour and will not fade over time when benchmarked against many other external faced materials.
We provide a vast range of colours and finishes to suit your individual project design requirements. The standard range consists of 10 colours, with a further 16 colours as part of our standard plus range, that represent a natural and subtle colour palette. Options available include Salmon Red, Iron Grey, Pearl White and many more.
In addition to the standard colours, glazes can be developed in almost unlimited varieties and individual colours and surface structures can be developed on customers’ request.
The Argeton Inspirio design range joins the natural properties of clay building materials, with all of today‘s innovative technology and sustainable aesthetics. Using digital engobing, a process of applying high-quality surfaces to clay panels before the firing process, a unique design is fused with the panel to form an inseparable unit. By precisely mixing mineral pigments, colours come out brilliantly and picture-perfect each time.
Collections inspired by rock, metal, concrete, and timber have been developed and are ready to use, but with so many natural elements to take inspiration from, Inspirio digital technology is the key to new creativity in facade design.
